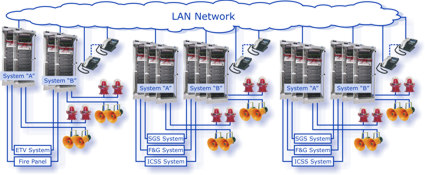

• Fully redundant "A & B" architecture.
• Each zone is provided with two identical systems, everyone managed by an ASTRO System Manager unit, with power supply and hard-disks redundancy. In case of failure of an ASTRO System Manager unit, the second one is able to manage all the functions of the system.
• All units of the plant are linked together via fiber optic cables, but each area is provided with copper cables to connect speakers and signalling lamps.
• Digital VoIP microphone operator "access point" type, installable at any point on the network, so totally independent from the amplification rack.
• Each "access point" unit may also call any other "access point" device (configurable function).
• Each area of the plant is divided into one or more zones of public address. ASTRO operates the call in a single zone, in a group of zones and in all zones in an area, as well as the call to a single area, a group of areas and to all areas
• In each area there is the possibility to manage on/off contacts, triggered by existing alarm systems, for the automatic dissemination of messages and/or alarm tones through speakers.
• Complete programmability of association among alarm event with area and/or zone into which the message or the alarm tone is broadcast.
• Management of signalling lamps associated with the call through the speakers.
• Management of diagnostics and remote configuration via CTM client.
